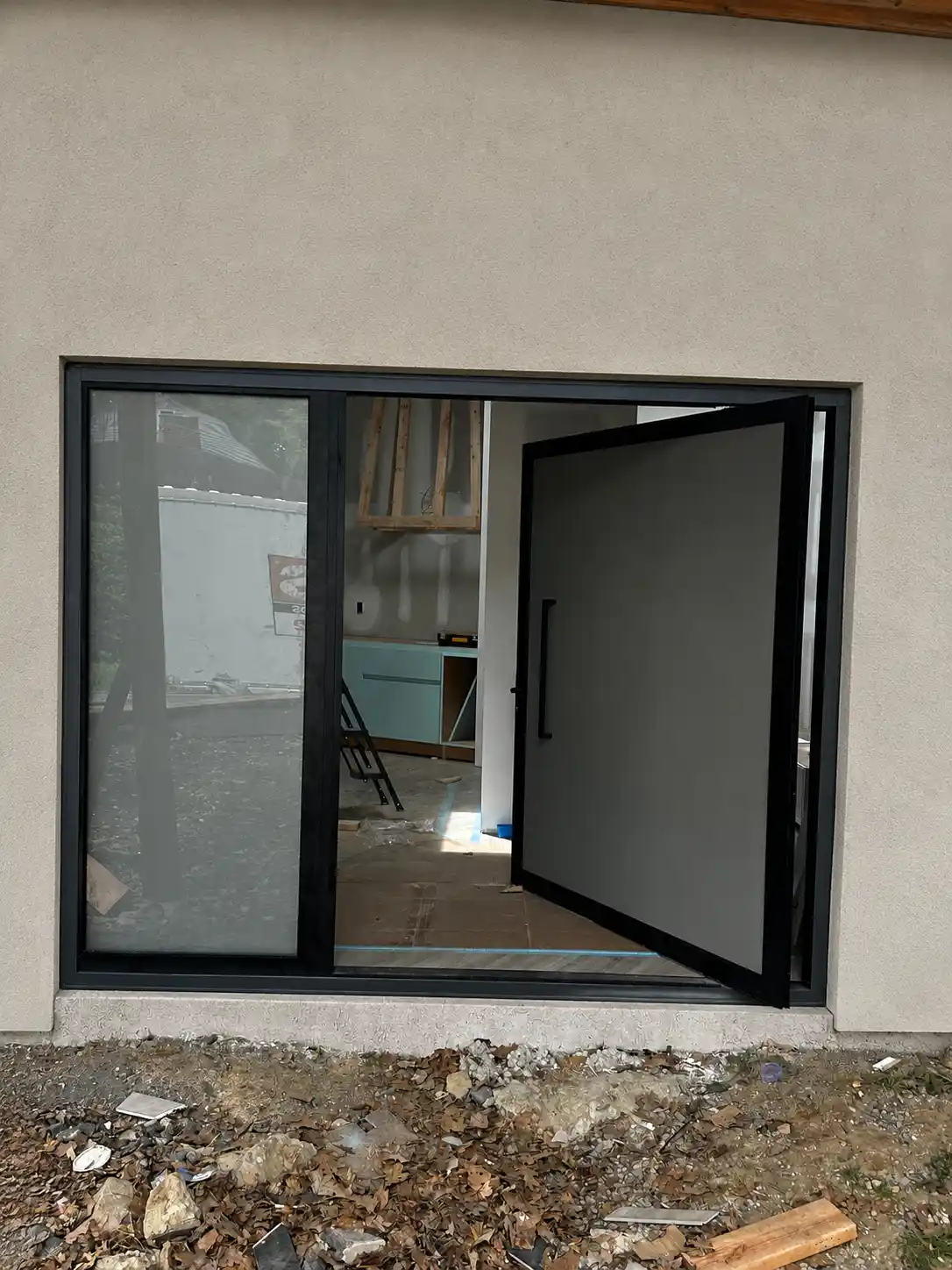

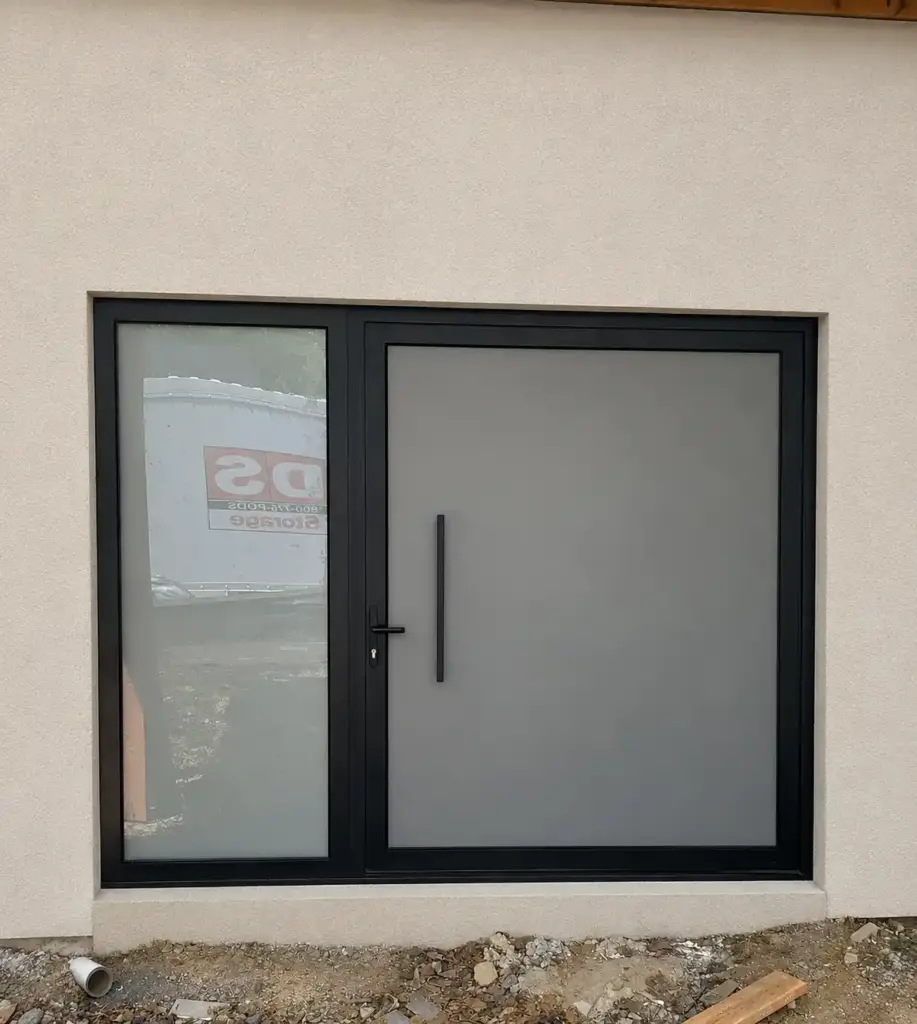

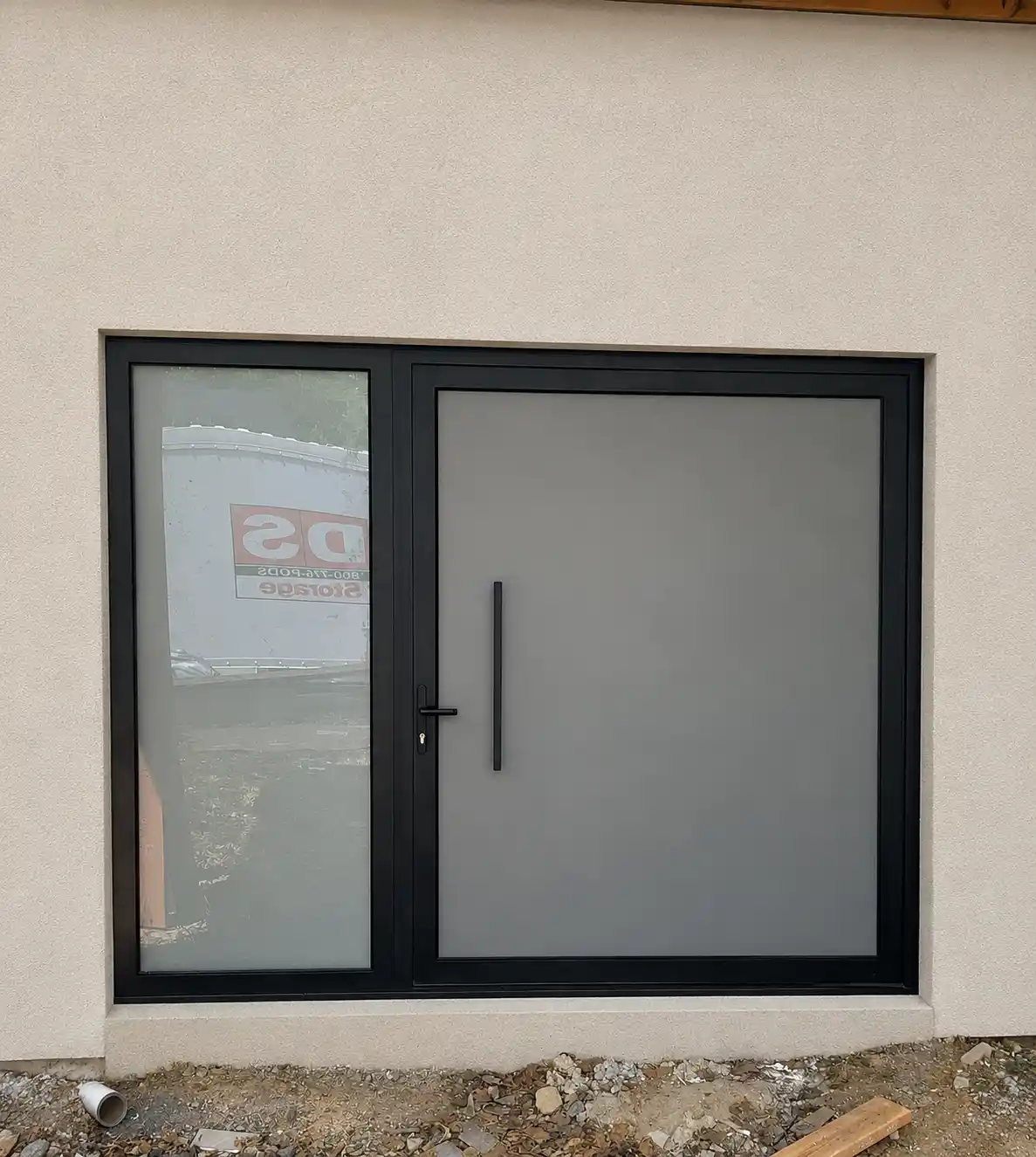

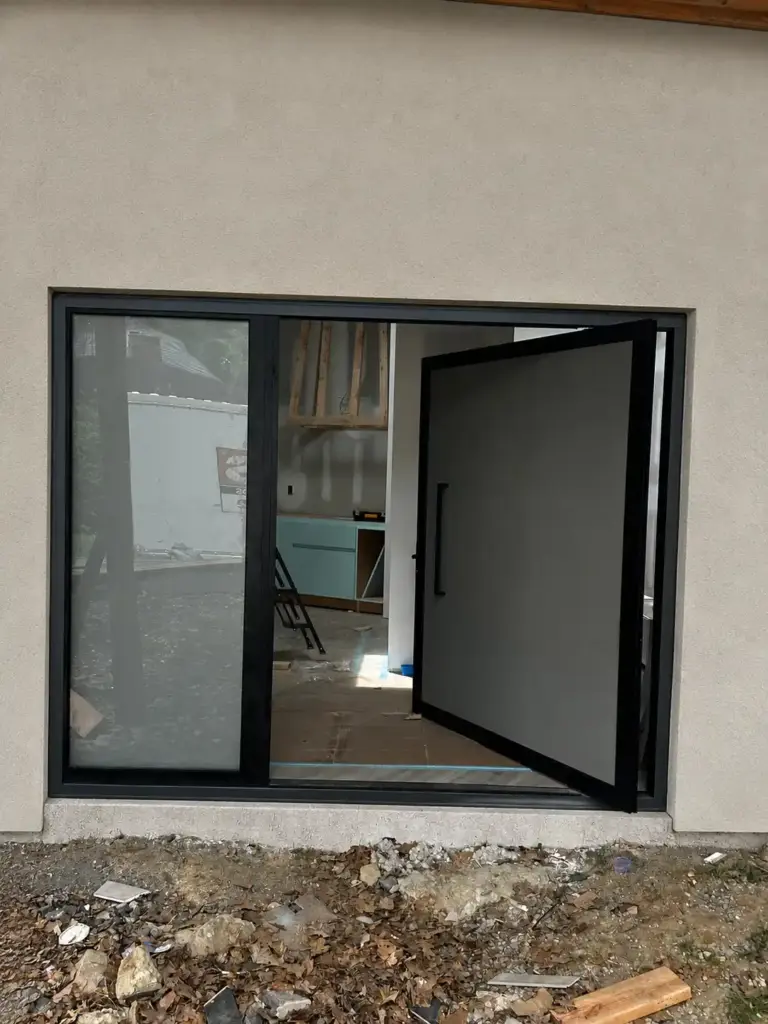

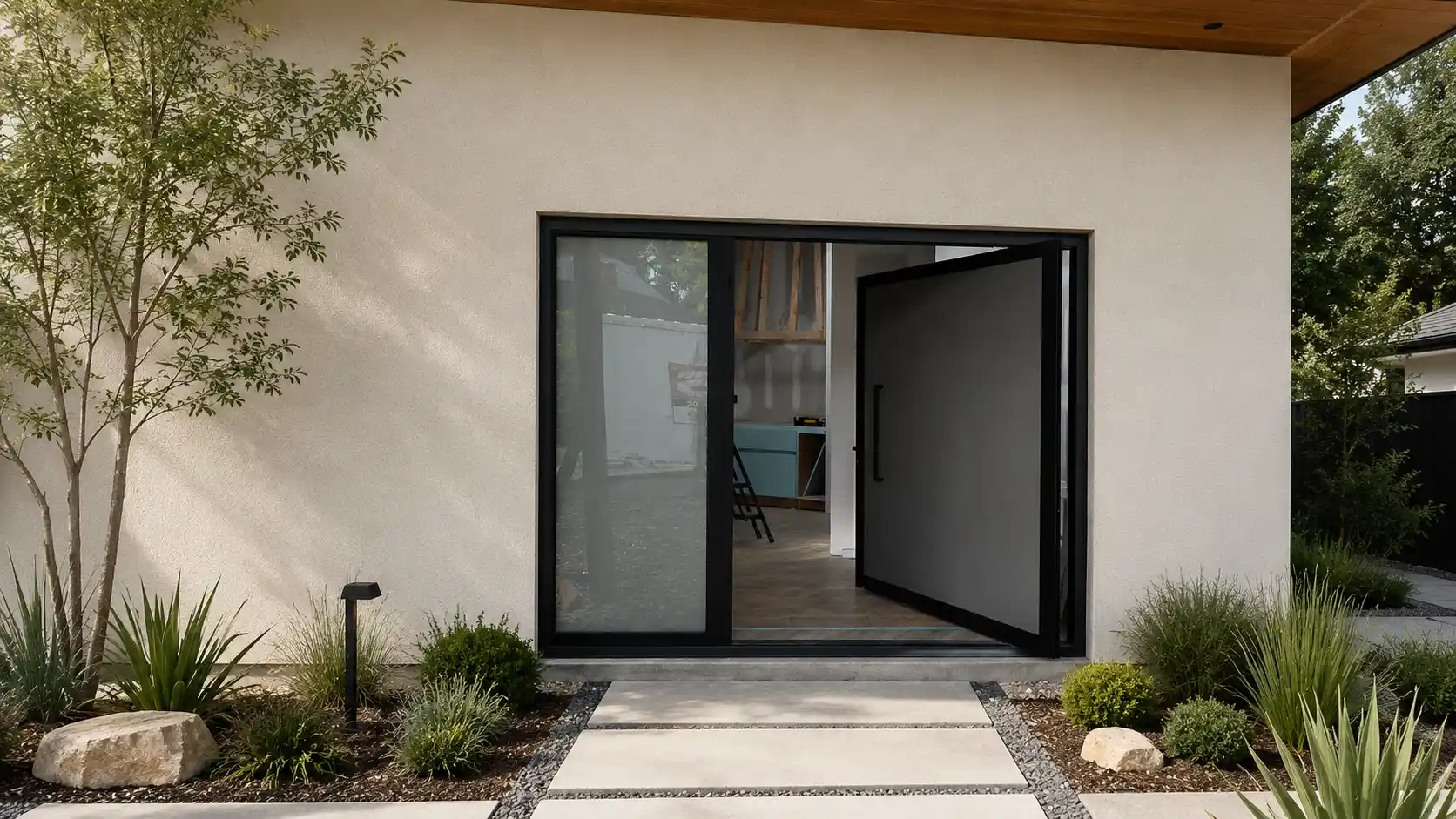

Custom Thermally Broken Aluminum Pivot Door Installation – Princeton, New Jersey

This custom aluminum panel door installation in Princeton, New Jersey was designed and manufactured according to the client's unique architectural vision. Measuring approximately 8' x 7', the oversized entrance door creates a striking modern appearance while providing exceptional functionality, security, and energy efficiency.

This custom aluminum pivot door in Princeton NJ was designed, fabricated, and professionally installed by Vision Art Aluminium as a fully customized entrance system for a residential property. Measuring approximately 8′ × 7′, the oversized entrance combines a contemporary aluminum pivot door, thermally broken construction, a full-height frosted-glass sidelight, premium European hardware, and a high-security 3-point locking system.

The homeowners wanted a front entrance with a strong modern architectural presence while maintaining privacy, natural daylight, security, and reliable year-round performance. Rather than adapting a standard-size door to the opening, Vision Art Aluminium developed the complete entrance around the dimensions of the property and the client’s design requirements.

The result is a clean, minimal entrance system that creates a distinctive focal point on the façade while maintaining the durability and functionality required for everyday residential use.

Aluminum Pivot Door in Princeton NJ

One of the defining characteristics of this Princeton project is the scale of the entrance.

At approximately 8 feet wide by 7 feet high, the custom assembly creates a substantial architectural opening while remaining visually balanced with the surrounding façade.

Unlike a conventional side-hinged entrance door, a pivot door operates around a pivot mechanism positioned within the top and bottom of the door assembly. This allows a large door panel to move with a distinctive, controlled motion while supporting the clean lines associated with contemporary architectural entrances.

For this project, the oversized aluminum panel was engineered around the opening and paired with precision hardware selected to provide smooth, dependable operation despite the scale of the entrance.

The large door surface, minimal detailing, and dark finish give the front elevation a more architectural appearance without introducing unnecessary decorative elements.

Thermally Broken Aluminum Construction

Improved Thermal Performance for a Large Exterior Entrance

The entrance system was fabricated using thermally broken aluminum profiles.

Aluminum provides excellent structural strength and dimensional stability, making it particularly well suited for large-format doors. However, because aluminum naturally conducts heat, a thermal break is incorporated between the interior and exterior portions of the frame to help reduce direct thermal transfer through the system.

For an oversized exterior entrance exposed to changing New Jersey temperatures, this construction provides an important performance advantage compared with conventional non-thermally-broken aluminum framing.

The thermally broken system allows the entrance to maintain the strength, durability, and slim architectural appearance of aluminum while supporting improved interior comfort and overall thermal performance.

Black Powder-Coated Aluminum Finish

The entrance was finished in a durable black powder-coated finish, reinforcing the modern character of the home while providing a clean architectural contrast against the surrounding exterior materials.

Powder coating provides a durable finished surface designed for exterior exposure and requires relatively little maintenance compared with many traditional painted finishes.

The black aluminum also visually reduces the prominence of the framing, allowing the proportions of the door and adjacent glazing to become the primary architectural features of the entrance.

Full-Height Frosted-Glass Sidelight

Privacy Without Sacrificing Natural Light

A custom frosted-glass sidelight was incorporated alongside the pivot door.

The glazing introduces natural daylight into the entrance area while limiting direct visibility through the glass from the exterior. This gives the homeowners greater privacy while avoiding the closed appearance of a completely solid entrance assembly.

The narrow vertical glass element also creates a deliberate visual contrast with the larger solid pivot panel and contributes to the balanced asymmetrical composition of the overall entrance.

Instead of treating the sidelight as a separate decorative component, it was integrated into the complete aluminum entrance system so the door, frame, and glazing read as one architectural element.

Premium European Pivot Hardware

Smooth Operation for an Oversized Door Panel

Large pivot doors require hardware capable of supporting significantly different loads and operating conditions than conventional residential doors.

This Princeton entrance incorporates premium European pivot hardware selected for smooth movement, durability, and reliable everyday operation.

The pivot mechanism allows the large panel to rotate in a controlled motion while maintaining the clean appearance of the door. Concealing much of the operating hardware also helps preserve the minimal architectural character of the entrance.

The combination of precision hardware, custom fabrication, and careful installation is particularly important on oversized systems, where alignment and hardware integration directly affect the long-term performance of the door.

High-Security 3-Point Locking System

Security was incorporated directly into the design of the entrance through a 3-point locking system.

Rather than securing the door at only one location, the multi-point system engages the entrance at several points when locked. This provides additional stability to the large door panel while strengthening the overall closure of the system.

Integrating the locking system into the aluminum entrance allows security and architectural design to work together without compromising the clean appearance of the finished door.

Custom Designed for the Existing Opening

This project was not based on a standard stock door size.

Vision Art Aluminium developed the entrance specifically around the existing opening, façade proportions, privacy requirements, desired finish, hardware configuration, and architectural goals of the homeowner.

The aluminum pivot door in Princeton NJ was custom fabricated around the dimensions and architectural requirements of the existing entran

The process included design coordination, precise measurement, custom fabrication, hardware integration, glazing, delivery, and professional installation.

Working from the actual conditions of the property allowed the entrance to become part of the architecture of the home rather than appearing as an oversized product inserted into an existing opening.

Design, Fabrication and Professional Installation

Vision Art Aluminium coordinated the project from the initial design stage through final installation.

The aluminum framing, pivot panel, frosted-glass sidelight, locking system, and hardware were developed as one complete entrance assembly. Proper alignment and installation were especially important because of the dimensions and weight associated with the oversized door.

From design development and custom fabrication through delivery and professional installation, the complete Princeton project was finished in approximately eight weeks.

Project Highlights

• Approximately 8′ × 7′ custom entrance system
• Oversized aluminum pivot door
• Thermally broken aluminum profiles
• Black powder-coated finish
• Full-height frosted-glass sidelight
• Premium European pivot hardware
• High-security 3-point locking system
• Custom fabrication for the existing opening
• Contemporary minimal architectural design
• Designed for privacy and natural daylight
• Professional installation in Princeton, New Jersey

Modern Aluminum Pivot Doors in Princeton and New Jersey

The completed entrance gives the property a stronger contemporary identity while combining the visual impact of an oversized pivot door with privacy, natural daylight, security, thermal performance, and smooth everyday operation.

This aluminum pivot door in Princeton NJ demonstrates how oversized entrance systems can combine architectural impact with thermal performance, privacy, and security.

Rather than relying on excessive ornamentation, the design creates its impact through scale, proportion, clean aluminum surfaces, carefully integrated glazing, and minimal architectural detailing.

Vision Art Aluminium designs, fabricates, and professionally installs custom aluminum pivot doors, oversized entrance systems, panoramic sliding doors, bi-fold doors, aluminum windows, and architectural glazing systems throughout Princeton and communities across New Jersey and New York.

Every entrance is developed around the dimensions of the property, architectural requirements, desired appearance, glazing configuration, hardware requirements, and performance goals of the individual project.
