Large Sizes
The pivot bearing carries the leaf weight into the floor and header, so a pivot leaf can grow to roughly 4 times the size of a conventional hinged door without sagging.
Modern Entry System
Pivot Doors

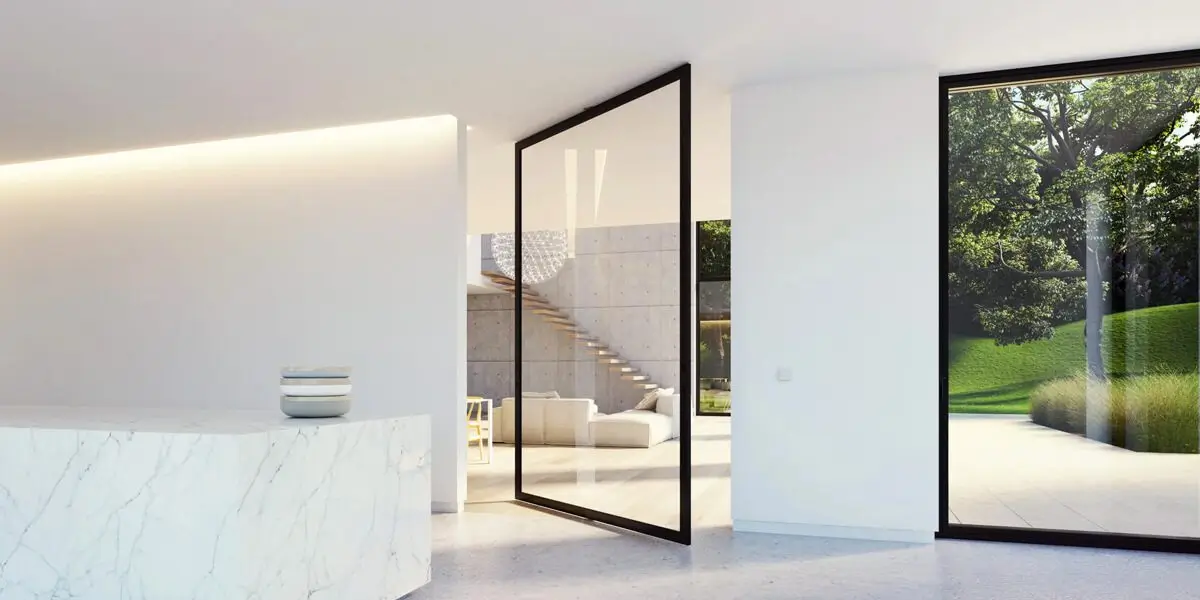

A pivot door rotates on a vertical axis set into the floor and header instead of swinging on side hinges, carrying oversized glass and aluminum leaves that define modern entries across New Jersey and New York.
Premium Aluminum Pivot Doors
What Is a Pivot Door?
A pivot door is a door that rotates on a vertical axis set into the floor and header, instead of swinging on side hinges. Vision Art Aluminium engineers its pivot systems on Reynaers architectural profiles from Belgium and configures them as single, 2-panel or 3-panel entries for homes across New Jersey and New York. Because the pivot point carries the load into the slab rather than into the frame, a pivot leaf can grow to roughly 4 times the size of a conventional hinged door.
That structural freedom is the whole point. An oversized entry in glass and aluminum sets the architectural tone of a modern facade, and the pivot mechanism is what makes that scale workable in daily use.
How Does the Pivot Mechanism Work?
Pivot door hardware concentrates the leaf weight into two bearing points: a floor spindle and a ceiling guide. The offset axis, typically placed a third of the way across the leaf, divides the door into a large opening section and a smaller counterbalancing section, so even a heavy panel moves with fingertip force.
Pivot door hinges of this type stay concealed within the profile, which keeps sightlines clean on both faces. The Vision Premium system adds double side slides on both sides of the leaf and closes flush with the frame, so the closed door reads as a single plane rather than a framed panel.
- Floor-mounted pivot bearing carries the vertical load into the slab.
- Concealed top guide keeps rotation true without a visible closer arm.
- Flush leaf-to-frame alignment with double side slides on the Vision Premium line.
- A low threshold detail keeps the transition to terrace or garden nearly step-free.
Low Threshold
The Vision Premium low threshold keeps the transition to terrace or garden nearly step-free, so the entry reads as one continuous floor line.
Against Cold
The Vision Premium pivot leaf insulates 2 to 2.5 times better than a standard aluminum swing door, keeping oversized entries comfortable through NJ and NY winters.
Silent Operation
Concealed bearings and double side slides move the leaf quietly, and one handle motion locks the door through its multi-point hardware.
What Are the Advantages of an Aluminum Pivot Door?
An aluminum pivot door earns its place on four measurable grounds. Aluminum resists wind, weather and coastal humidity without warping, so the oversized leaf stays true through NJ freeze-thaw cycles. The material wipes clean like any painted metal surface. The rotation geometry saves interior floor space compared with a wide inward-swinging leaf. And the scale itself, up to roughly four times a standard door, is simply unavailable in hinged formats.
Against these gains stands one planning requirement: the floor bearing needs a proper slab detail, so a pivot door company should be involved before the entry slab is poured. Retrofits are routine as well, but early coordination removes cost.
Which Configurations and Materials Are Available?

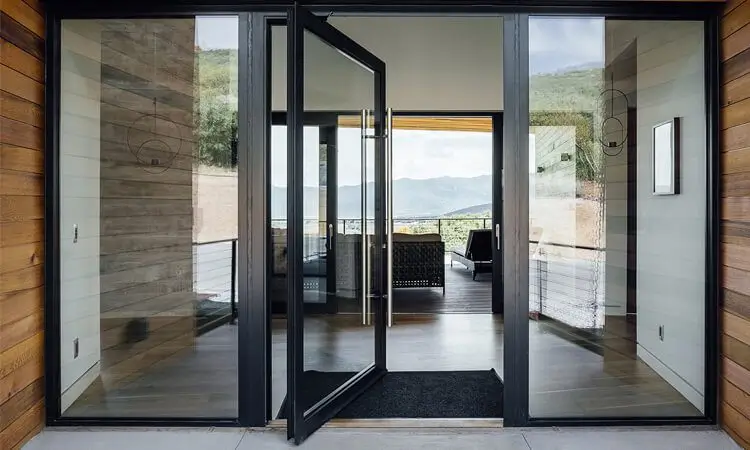

The configuration range runs from a single rotating leaf to 2-panel and 3-panel compositions where fixed side panels extend the glazed width. A glass pivot door execution fills the leaf with insulated glazing for daylight; a closed aluminum leaf delivers privacy and maximum rigidity; mixed builds combine both.
- Single, 2-panel and 3-panel layouts.
- Glass pivot door leaves with a blinds-between-the-glass option, so shading never needs dusting.
- Interior faces in six stained or painted wood options, protected by a fiberglass exterior skin.
- Aluminum surfaces in architectural finishes matched to the facade palette.
Every leaf is fabricated to the measured opening. Vision Art Aluminium runs the full sequence in-house: design concept, site inspection, drawings and permits, manufacturing and installation by factory-trained crews, with an average installation window of about one week once township approval and production are complete.
How Do Smart Lock Systems Integrate?
Pivot hinge systems in the range accept smart locking at any time, before or after installation. Access runs through card, PIN code or biometric reading, driven by silent motors inside the leaf, and the door can be opened remotely through a camera and voice intercom event. During a smart-home transition the lock integrates with the home’s existing automation platform rather than requiring a parallel app.
Mechanical security does not depend on the electronics. The multi-point locking and the flush, slab-anchored leaf remain the physical barrier; the smart layer only decides who may operate it.
What Distinguishes a Pivot Front Door From a Standard Entry?
A pivot front door replaces the visual language of a residential entry: a wider leaf, uninterrupted material surfaces and no visible hinge column. Where a hinged pivot entry door maxes out near standard opening sizes, the pivot format handles oversized openings without sagging, because no side jamb carries the weight.
Daily behavior changes too. The rotating leaf sweeps a smaller interior arc than an inward-swinging door of equal width, preserving usable floor area in the entry hall. Cleaning follows the same routine as any door; the aluminum surfaces wipe clean and hold their finish without repainting.
Vision Premium: The Flush, Insulated Pivot System
Vision Premium is the security-focused execution of the pivot concept in the Vision Art Aluminium range. The leaf sits flush with the frame, locks through multi-point hardware and insulates 2 to 2.5 times better than a standard aluminum swing door, a decisive figure for a leaf this large in a NJ or NY winter.
| Feature | Vision Premium Pivot | Conventional hinged entry |
|---|---|---|
| Maximum leaf scale | Oversized, up to ~4x standard | Standard opening sizes |
| Load path | Floor and header bearings | Side jamb hinges |
| Thermal behavior | 2 to 2.5x warmer than aluminum swing doors | Baseline |
| Threshold | Low, near step-free | Standard sill height |
| Closed appearance | Flush with frame, concealed hardware | Visible hinges and frame steps |
| Installation options | Standard, flush with inner frame, flush with outer frame | Standard only |
Three installation solutions cover different wall builds: standard placement, flush with the inner frame for clad interior walls, and flush with the outer frame for monolithic facade lines. Thermal and acoustic performance, water tightness and air permeability ratings qualify the system for exposed exterior use, not only for interior statement doors.
Who Is a Pivot Door Right For?
Three project profiles get the strongest return. New builds and facade renovations gain a signature entry: one oversized rotating leaf defines the architecture more than any other single component. Indoor-outdoor layouts gain the low threshold, which turns the doorway between hall and terrace into a smooth, near step-free transition. Security-driven owners gain the Vision Premium execution, where flush geometry, multi-point locking and optional biometric access combine in one leaf.
The scale of the investment matches the scale of the door: this is a once-per-home decision, engineered and installed as a single coordinated project from the Montclair, NJ showroom.
Configurations and options can change. Leaf sizes, finishes and smart-lock compatibility should be confirmed against the measured opening during quotation.
Frequently Asked Questions
What is the difference between a pivot door and a hinged door?
A hinged door hangs its weight on side jamb hinges; a pivot door rotates on floor and header bearings set on a vertical axis. The pivot load path allows oversized leaves, roughly up to 4 times standard size, with concealed hardware and fingertip operation.
Can a pivot door be used as a front door?
Yes. A pivot front door is the format’s most common role. The Vision Premium system closes flush with the frame, carries multi-point locking, insulates 2 to 2.5 times better than a standard aluminum swing door and meets water and air tightness demands for exposed entries.
Do pivot doors come with glass?
A glass pivot door fills the rotating leaf with insulated glazing, and a blinds-between-the-glass option adds shading sealed inside the unit. Closed aluminum leaves and mixed glass-and-panel builds cover privacy-driven briefs, in single, 2-panel and 3-panel layouts.
Are pivot doors secure?
The security case rests on mechanics: a flush leaf anchored into floor and header bearings, multi-point locking and optional smart access by card, code or biometrics with silent motor drives. Remote opening through camera and voice intercom stays under the owner’s control.
How long does pivot door installation take?
Vision Art Aluminium runs design, site inspection, drawings, permits, manufacturing and installation as one sequence. Once township approval and production are complete, installation by factory-trained crews averages about one week depending on project size.
